Work on the English Electric Lightning F.6 kit continues to move forward at a very satisfying pace, with fuselage modelling now well advanced. At this stage, the project has firmly moved beyond “interpretation” and into true reference-driven engineering, where real-world data dictates every major decision.

We expect to share preview CAD renders next week, giving a first look at how the Lightning’s unique fuselage geometry is being captured.

Applying Real Aircraft References

A significant amount of time has been spent reviewing and validating the extensive reference material compiled by Mario. These references are now being actively applied to the CAD model, ensuring that dimensions, contours, and structural breaks reflect the real aircraft rather than legacy kit interpretations.

This process quickly highlights why some previous kits — including those from Trumpeter — struggled to capture the Lightning’s fuselage correctly. Without anchoring geometry to actual structural frames and factory documentation, it’s very easy to introduce subtle but noticeable errors.

A Modular Breakdown Based on the Real Aircraft

To ensure accuracy and flexibility across future Lightning variants, the kit is being designed in a way that mirrors how the real aircraft was constructed.

The fuselage will be broken down as follows:

Main Fuselage

The main fuselage section from Frame 26 rearwards, excluding the ventral packs.
This portion of the airframe is common across all Lightning marks, making it an ideal standardized core.

Forward Fuselage

The forward fuselage from the air intake to Frame 26 will be a separate assembly.
This approach allows accurate development of different Lightning variants, as the forward fuselage, ventral packs, and dorsal spine represent the primary external differences between marks.

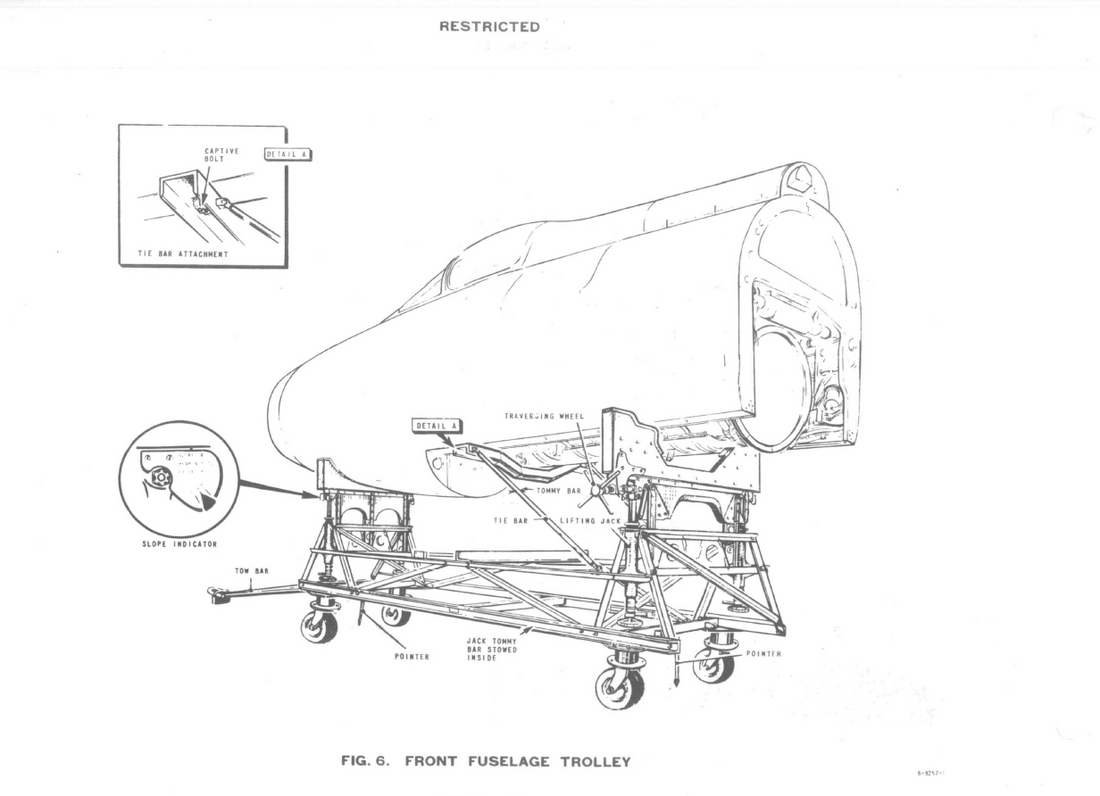

An image above from A.P.101B-1006-14 clearly shows the forward fuselage terminating at Frame 26 and serves as a key structural reference.

Flying Surfaces

  • Wings and horizontal stabilisers will be separate assemblies

  • The vertical stabiliser will also be a separate component, allowing correct configuration across different Lightning variants

This modular approach not only reflects the real aircraft but also provides a solid foundation for future development.

New Reference Material Arrives

Adding to the momentum, an exceptional new reference book has just arrived from the UK:

Uncovering the English Electric Lightning
by Danny Coremans & Peter Cordis

The sheer depth of photography and technical detail in this book is outstanding. It provides invaluable insight into surface detail, panel interfaces, internal structures, and configuration differences — exactly the kind of material needed to support accurate super-detailing.

A second Lightning reference book is already en route from the UK and should arrive within the next few days. Together, these publications will play a major role in refining fine details and ensuring the final kit does justice to this iconic aircraft.

What’s Next

  • Shareable CAD previews coming next week

  • Continued refinement of fuselage geometry

  • Ongoing validation against original factory and RAF documentation

  • Preparation for variant-specific development

Accuracy is the priority, and every step of this process is focused on producing a Lightning kit that reflects the real aircraft — not compromises from outdated references.

More updates soon. ⚡
